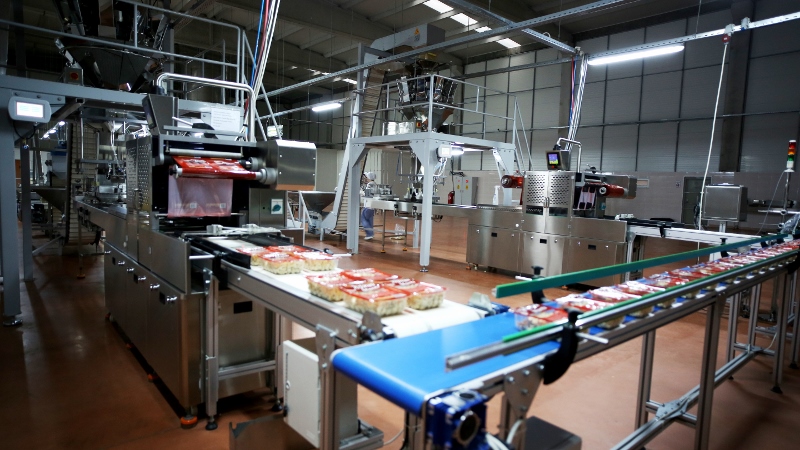

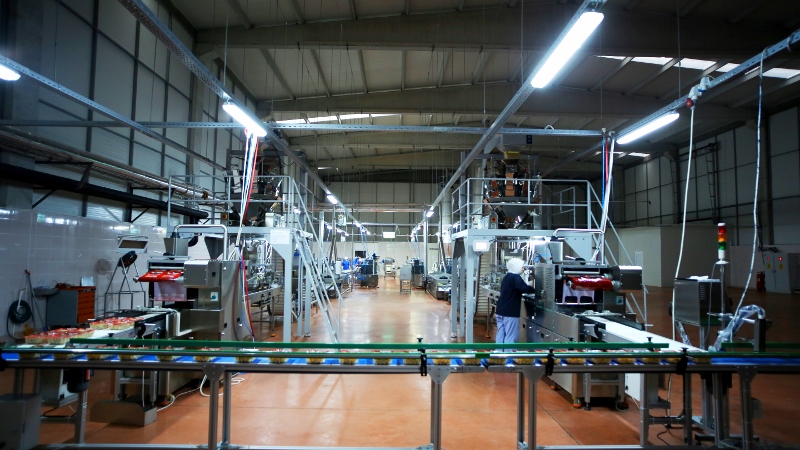

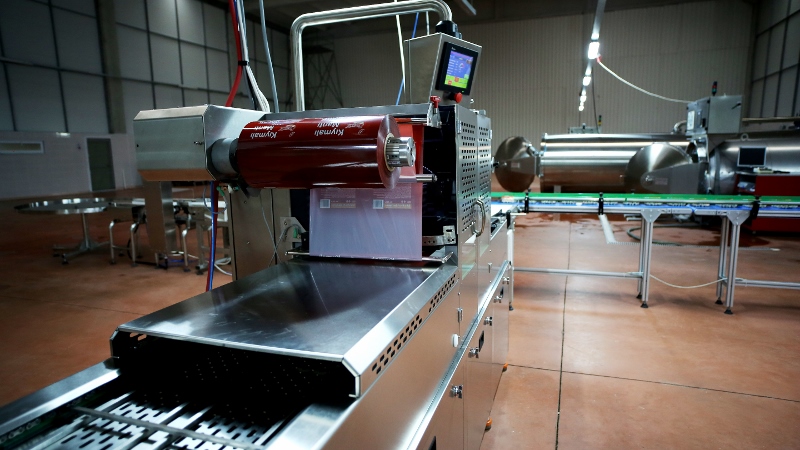

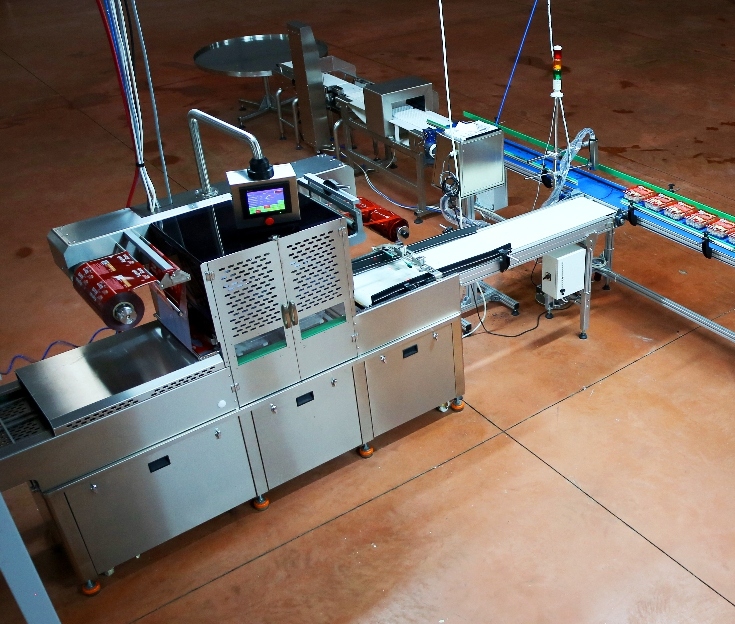

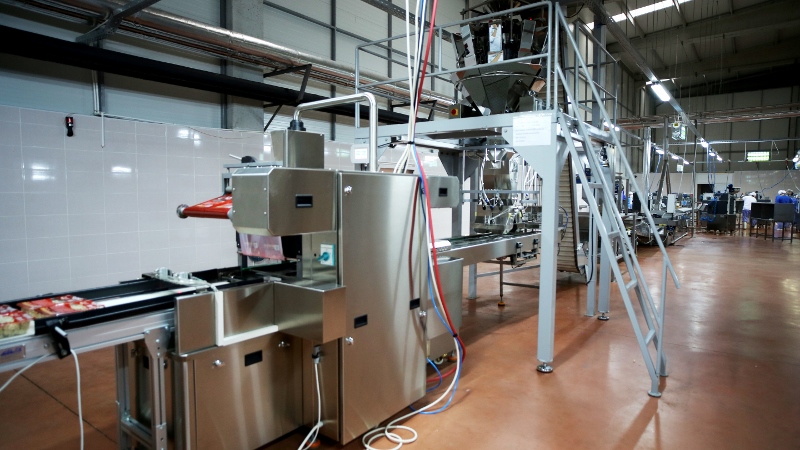

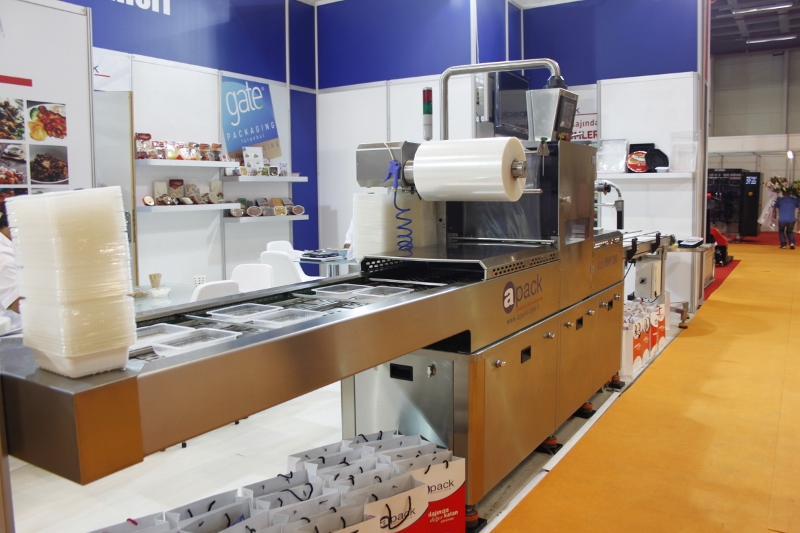

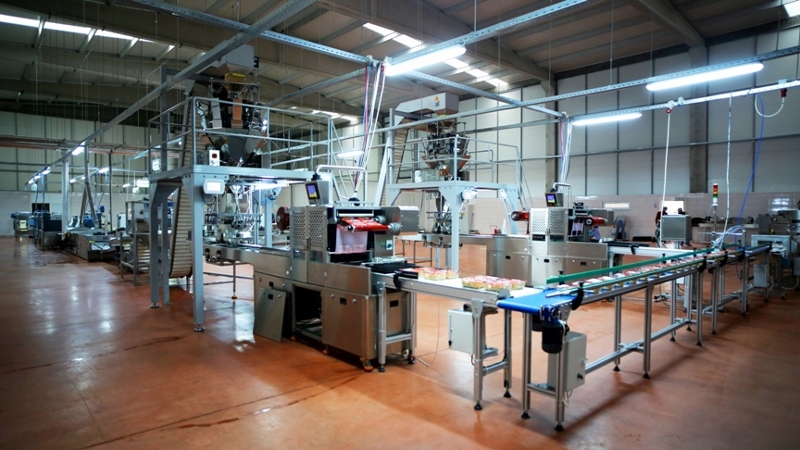

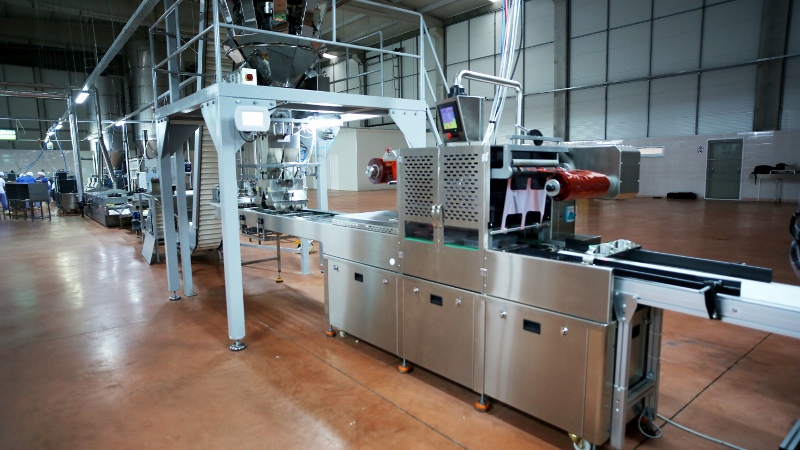

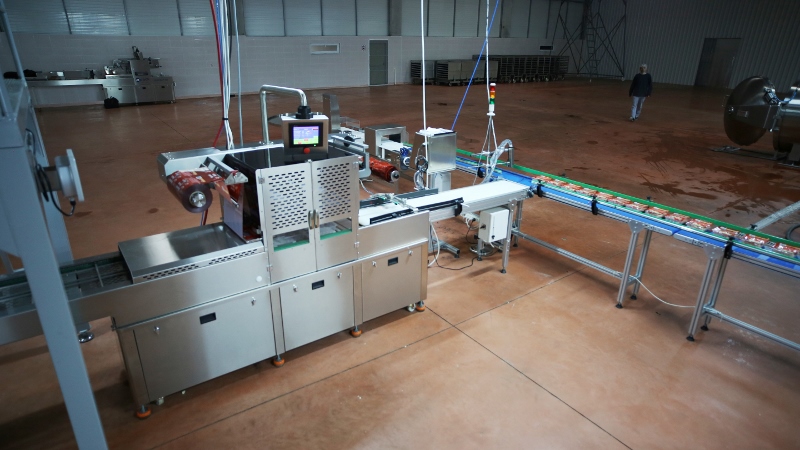

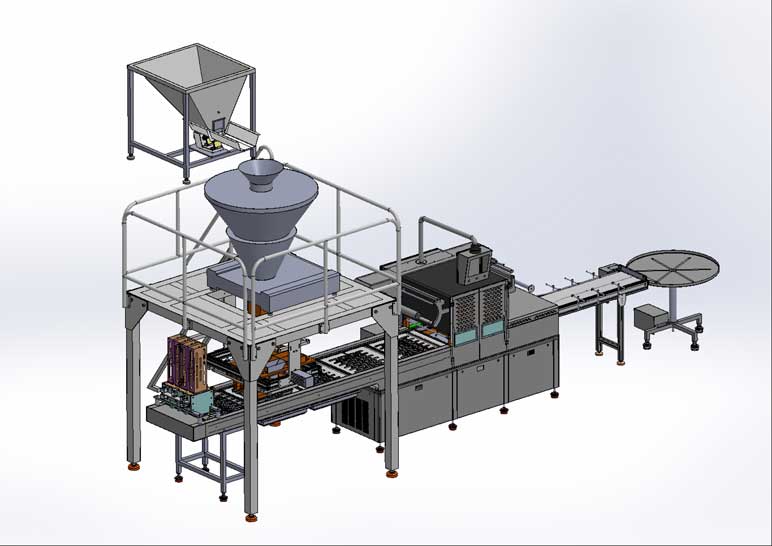

If you need high capacity MAP packaging automation, this is what you search for. autoMAP200 series full automatic MAP tray sealer line gives you a hand more than a standard Mapping machine. On basis, there is not so much difference between autoMAP100 to autoMAP200 models. autoMAP100 has one row production line but autoMAP200 has 2 rows line. Therefore the capasity doubled. The machine dimension is longer than autoMAP100. The pump is bigger, mould technique is different. autoMAP200 is suitable for high level production. The line may contains tray dispanser, autofilling unit, scaling, mapping, labeling, barcoding, collecting etc. units depends on your demands.

The most professional solution for MAP Modified Atmosphere Packaging line includes vacuum and protective food gas options.

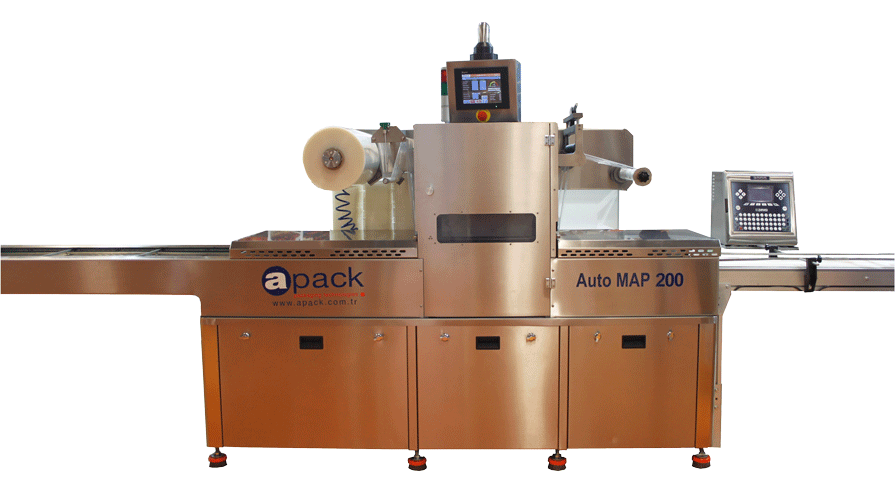

autoMAP200

CERTIFIED WORLD INDUSTRY STANDARDS
LOWER COST FOR INDUSTRIAL PRODUCERS
HIGH-END QUALITY COMPONENTS
FULLY AUTOMATIC
COMPATIBLE REMOTE ACCESS VIA INTERNET
EASY TO USE
EFFECTIVE / VARIABLE / PROFITABLE
VACUUM PUMP IS INSIDE THE FRAME
GRADUAL VACUUM APPLICATION
HIGH PERFORMANCE MAPPING UNIT
COMPATIBLE FOR ALL TYPE OF PACKAGING ACCESSORIES
WORK WITH ALL TYPE OF TRAY AND FLEXIBLE FILM
WORK WITH PRINTED TRAYS AND FILMS

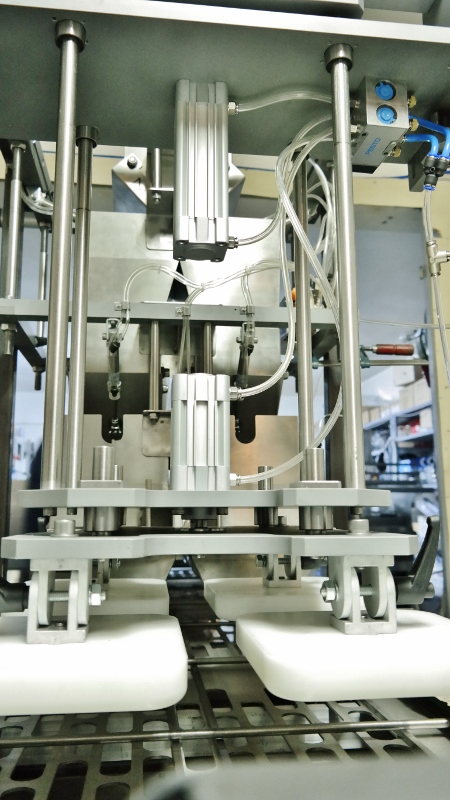

TOOL SET (MOULD) CHANGEABLE
CONVENIENT FOR FOOD PACKAGING

Stainless-steel body and hygienically designed conveyor belts and moving parts allow for cleaning and maintenance without any hassle. It also suitable for using single and multiple trays.

Accomplish with excellence by Functional Control System

By means of touch-screen panel, every step of the packaging process can be controlled easily. The automation unit with PLC control circuits, monitors and controls processing line provides immediate alerts on possible faults, misuse, and equipment malfunctions, thus protects the systems. Multiple program memory makes it easy to switch to different package types. All procedures can be adjusted according to various trays and films sizes.

Gradual vacuum application ZERO₂XYGEN permits all gasses to be removed from the package. Liquid foods, sauces, dressings and hot-filled products can be hermetically sealed with ease. In this way, all the oxygen in the package and in the product is taken out. After the desired atmosphere prepared for the package, the upper film is sealed over preformed food tray. Now the package is closed tightly. The corelation inside and outside of the package is interrupted.

The use of natural gases together with proper packaging materials and machines help to maintain the quality of the food and prolong their shelf life. The MAP gas mixtures usually consist of the gases already present in the air that we breathe but in different compositions: carbon dioxide (CO2), nitrogen (N2) and oxygen (O2). The gas mixture is added before the trays are sealed.

USAGE OF autoMAP200

CENTRAL KITCHEN
READY TO EAT
CATERING
MILK PRODUCT
DELICATESSEN
PROCESSED FOOD
FRESHCUT
FROZEN
MEAT
DRIEDFOOD
SEAFOOD
BACKERY, PASTRY
MEDICAL
MILITARY LOGISTICS

Our autoMAP200 serie mapping machines provides quick service and cleaning facilities by easy-removable side covers . All frames and intermediate elements were manufactured with ISI304 stainless steel.

We build the autoMAP200 unit with using polished construction materal for safe and hygiene in VDE-CE standards . All machine series have EMERGENCY STOP function.

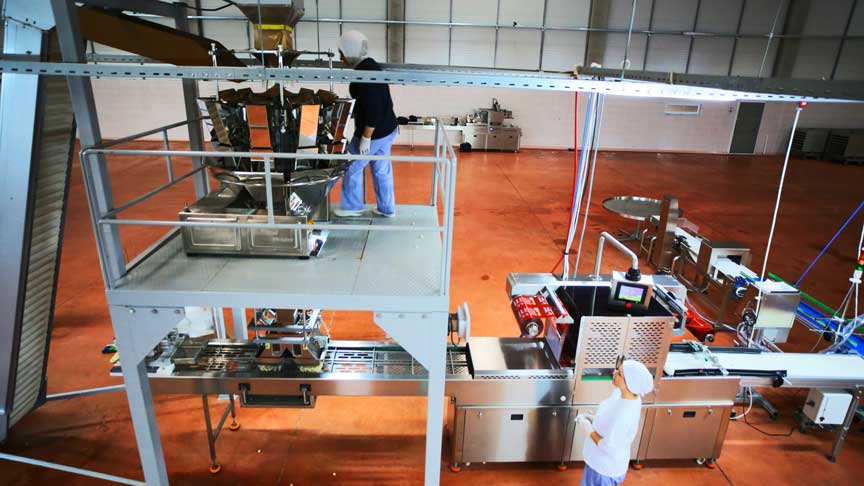

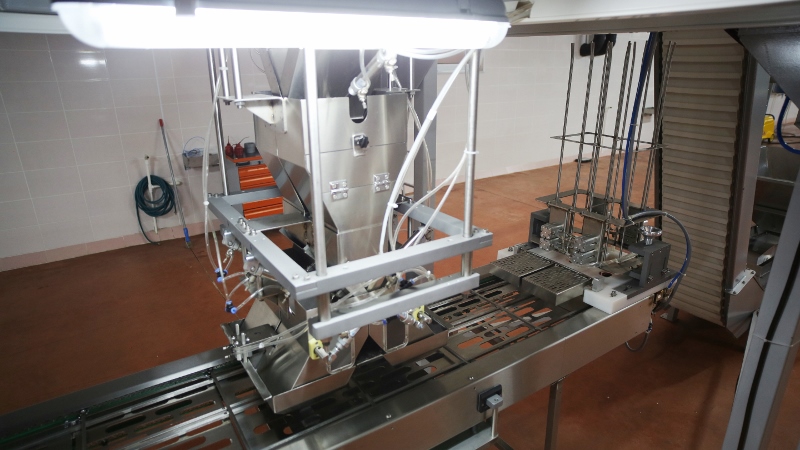

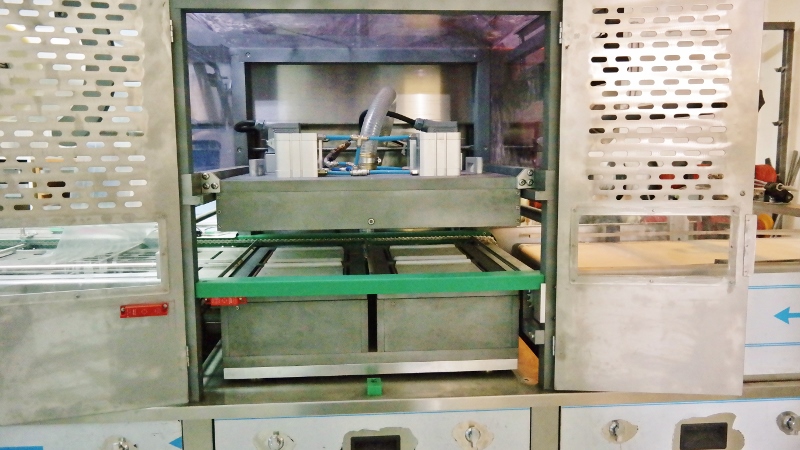

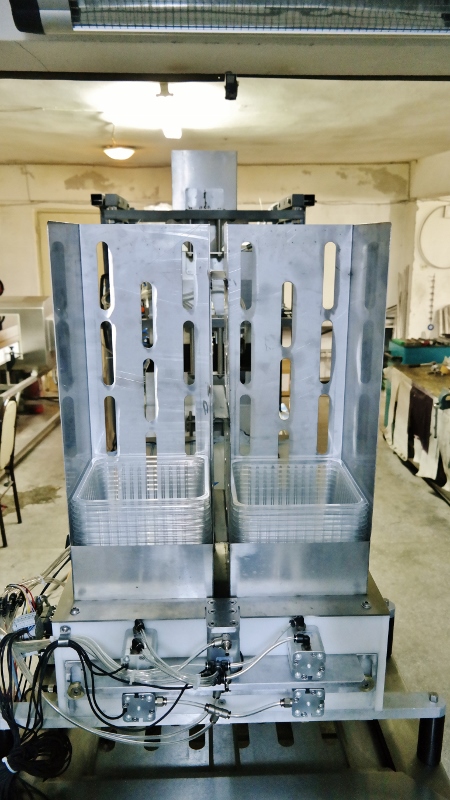

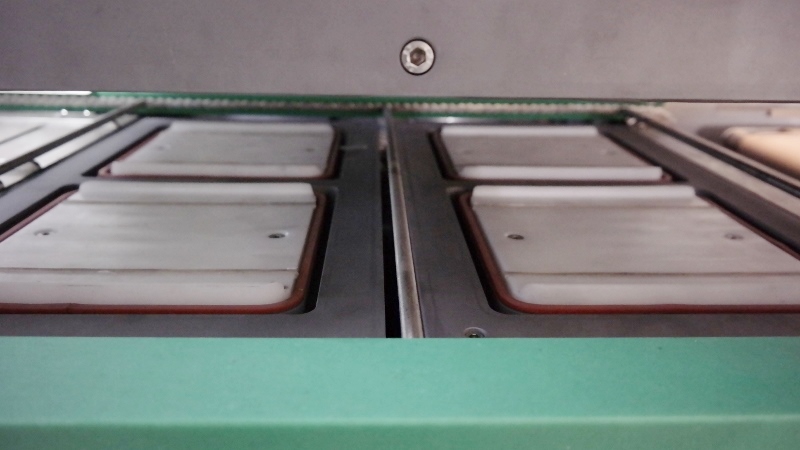

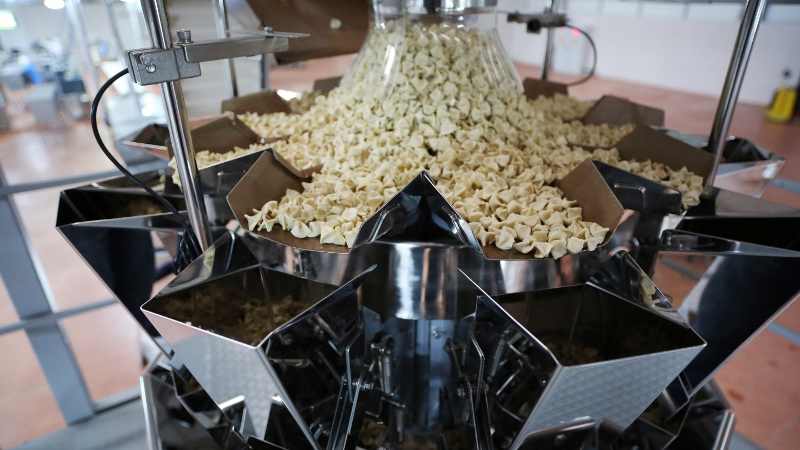

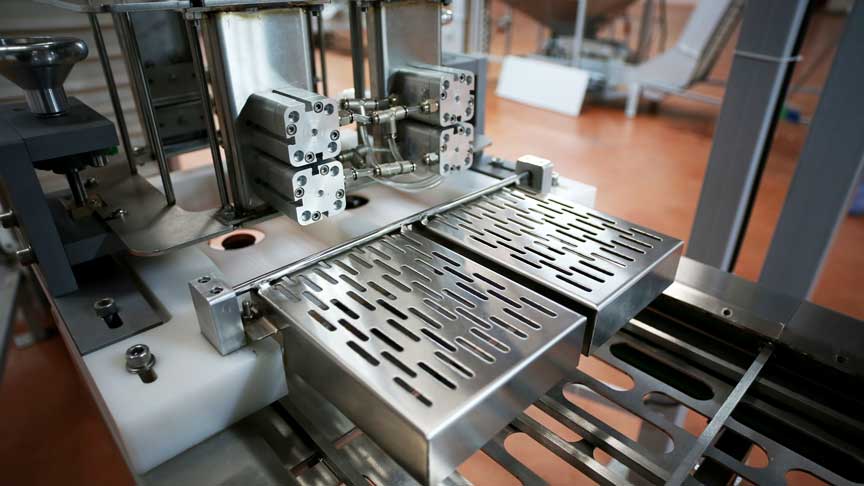

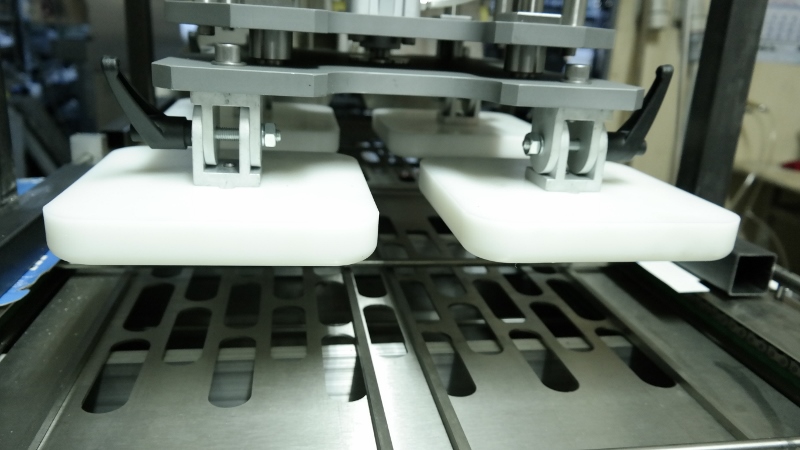

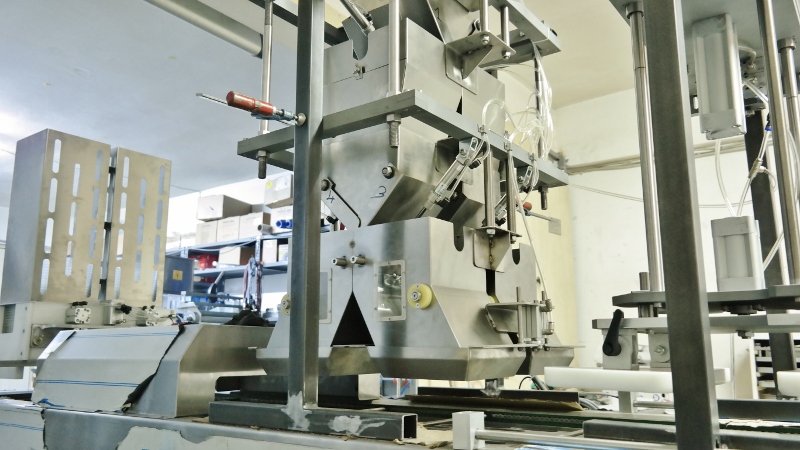

Mould can change very quickly and easily. Automatic tray dispanser, automatic product scaling and filling unit, labeling and barcoding units, product collectors and boxing units can be added.

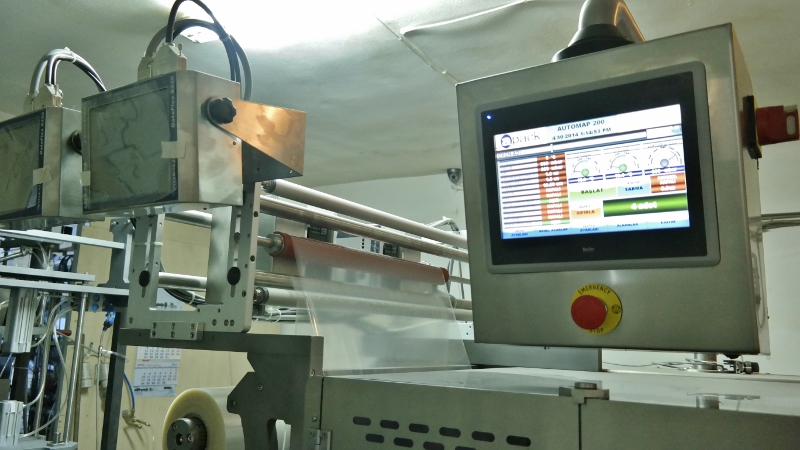

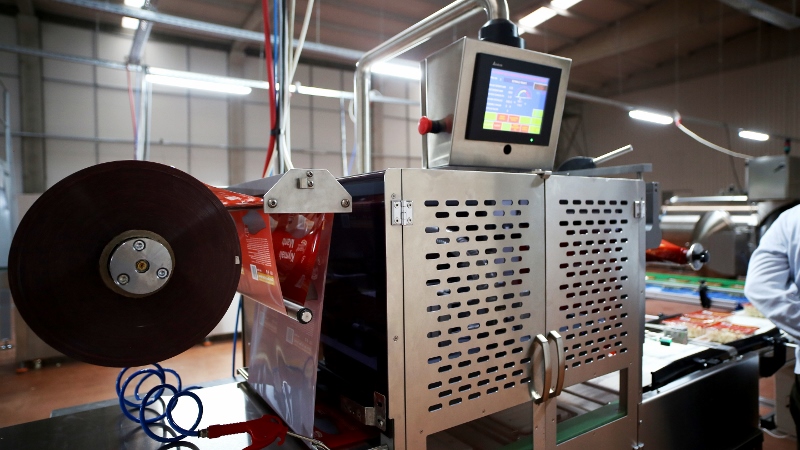

All machine can command via over very useful PLC touchscreen. LCD Graphic Display with touchscreen is very easy to use. Multilingual programmed control panel can turn to the desired direction in VDU norms. Adjustable up to 99 different process programs. The minimum and maximum temperature values can be monitored simultaneously on the touchscreen. The unit’s working order and possible errors, error logs are displayed on the control display. All the settings and features of the machine functions can be controlled from the touchscreen. If necessary, the work settings can be avoided by locking for the potential user faults. Counting products, hours of operation, cycles, production process, errors, functions reports can show in any time on the control panel.

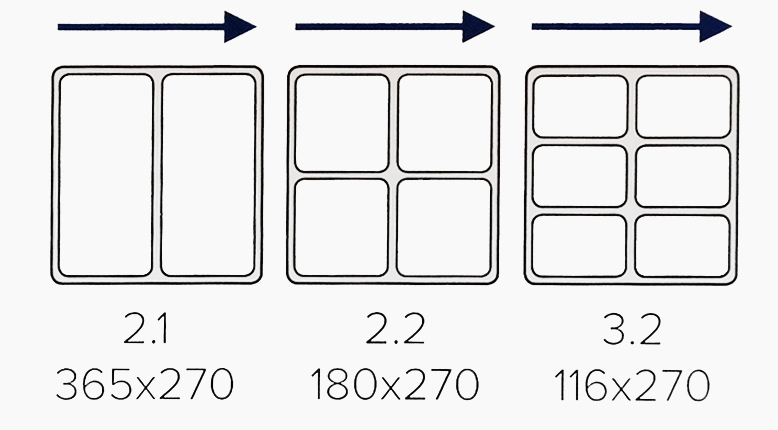

autoMAP200 Tool Set (mm)

autoMAP200 Technical Details
POWER	400V, 50Hz, 3/N/PE
POWER CONSUMPTION	Min 4.0 kW - Max. 8.0 kW
VACUUM PUMP	100-160 m³/h
AIR PRESSURE CONSUMPTION	6 bar Homogen 305 NL/Min.
GAS PRESSURE	2‐6 bar
CONTROL SYSTEM	24 PLC
FILM WIDTH	420 mm.
FILM REEL DIAMETER	76 mm.
CAPACITY	8/14 Cycle/min
OPTIONAL	Liquid / Dust Filter

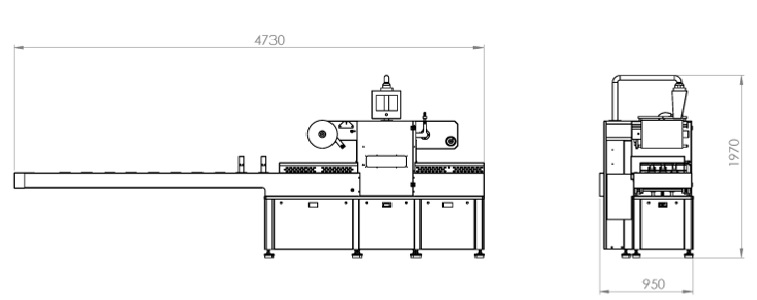

autoMAP200 Machine Details
WIDTH	1180 mm.
LENGHT	3665 mm.
HEIGHT	1980 mm.
LOADING UNIT	1.5 m. - 3.0 m.
WEIGHT	1200 Kg.
